767 LE/S – Dome pressure regulator (G 3″ female)

767 LE/S – Dome-loaded pressure regulator

[slider id=’398′ name=’767′]

Technical data

Features
  • Kv value: 30
  • High flow rates
  • Pilot Control Tube
  • Balanced Seat Design
  • Suitable for O2
  • Ready-to-use set, completely mounted, inclusive pressure gauge, pilot pressure regulator and fittings
Pressure range
  • Max. inlet pressure: 40 bar / 580 psi (O2 30 bar / 435 psi, CO2 25 bar / 363 psi)
  • Outlet pressure: 0.5-30 bar / 7-435 psi
  • Max. pilot pressure: 30 bar / 435 psi
Connections
  • G 3″ female, Flange DN 80/100 (Set)
    (Other connections on request)
  • Pilot pressure regulator: G 1/8″ female
  • Gauge: G 1/8″ female
Materials
  • Model LE/S: brass, elastomer
  • Model LE-ES/S: 316L / 1.4404 stainless steel, elastomer
Weight
  • approx. 45 kg / 99.2 lb (brass)
Options
  • Filter

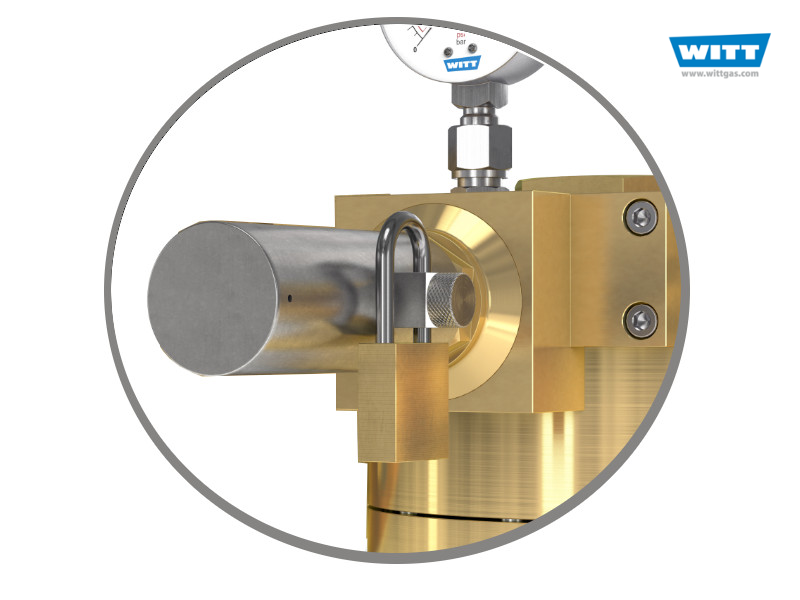

  • Lockable spindle hood against unauthorized adjustment
Gases
  • several gases, e.g. N2, CO2, O2, H2
