757 LE/S – High performance pressure regulator (G 2″ female)

757 LE/S – High performance dome-loaded pressure regulator

Flow charts

Technical data

Features
  • Kv value: 15 (cv value: 17.4)
  • High flow rates

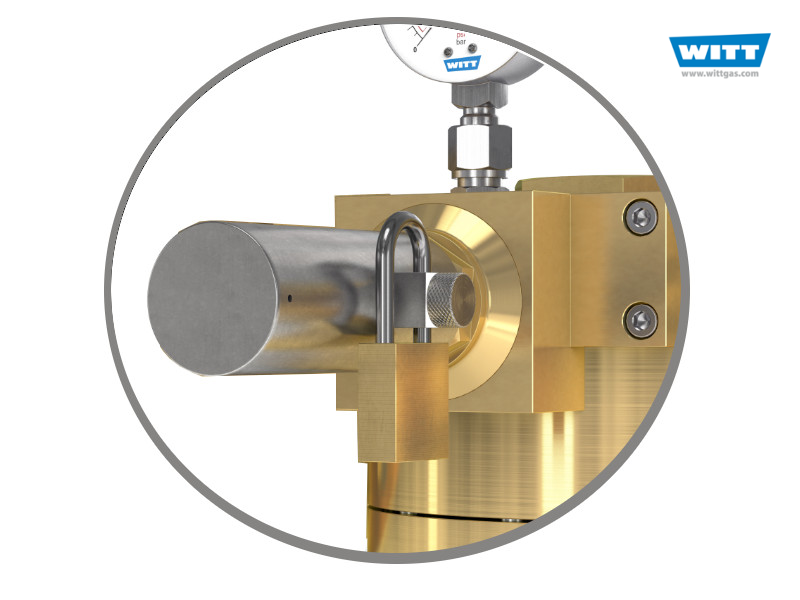

  • Pilot Control Tube

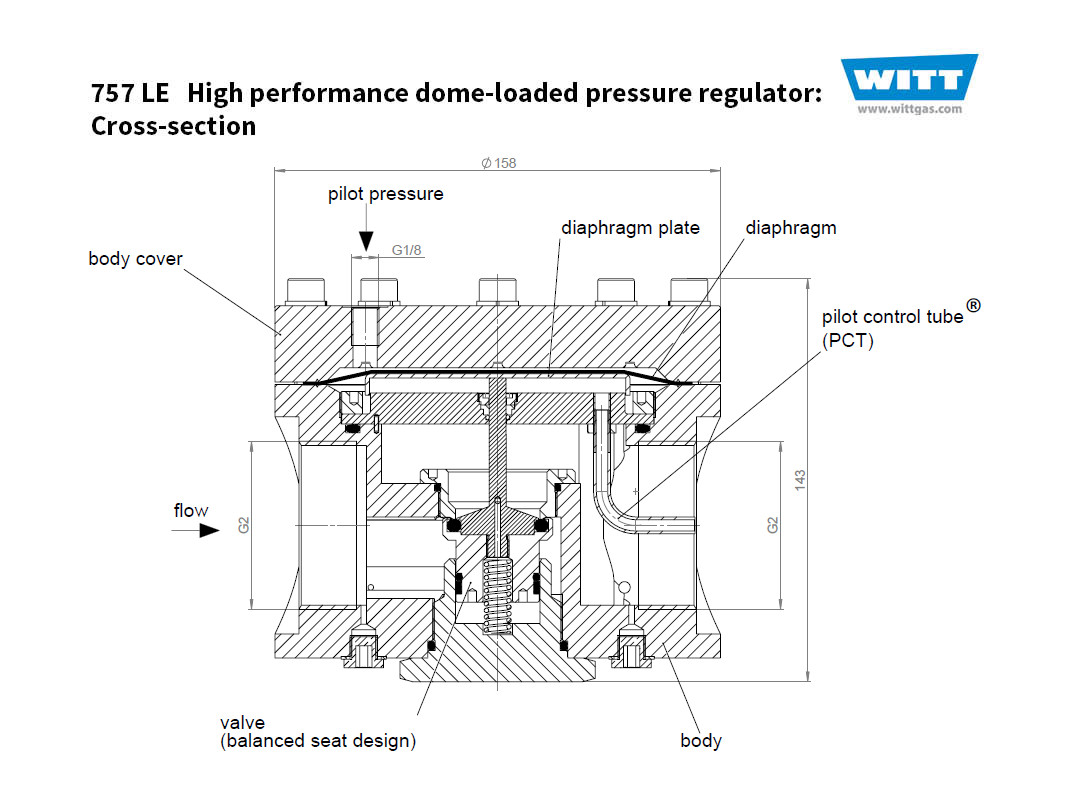

  • Balanced Seat Design
  • Suitable for O2

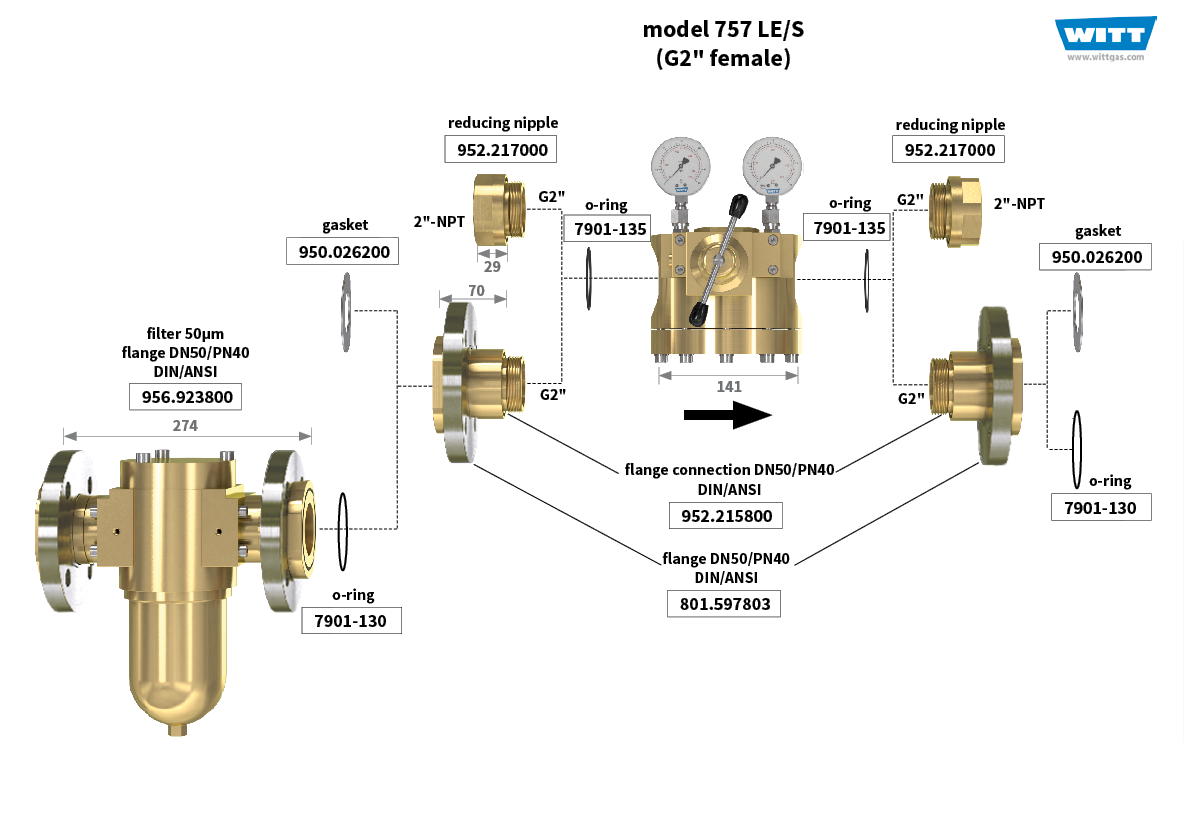

  • Ready-to-use set, completely mounted, inclusive pressure gauge, pilot pressure regulator and fittings
Pressure range
  • Max. inlet pressure: 40 bar / 580 psi (O2 30 bar / 435 psi, CO2 25 bar / 363 psi)
  • Outlet pressure: 0.5-30 bar / 7-435 psi
  • Max. pilot pressure: 30 bar / 435 psi
Connections
  • G 2″ female, Flange DN 50 (Set)
    (Other connections on request)
  • Pilot pressure regulator: G 1/8″ female
  • Gauge: G 1/8″ female
Materials

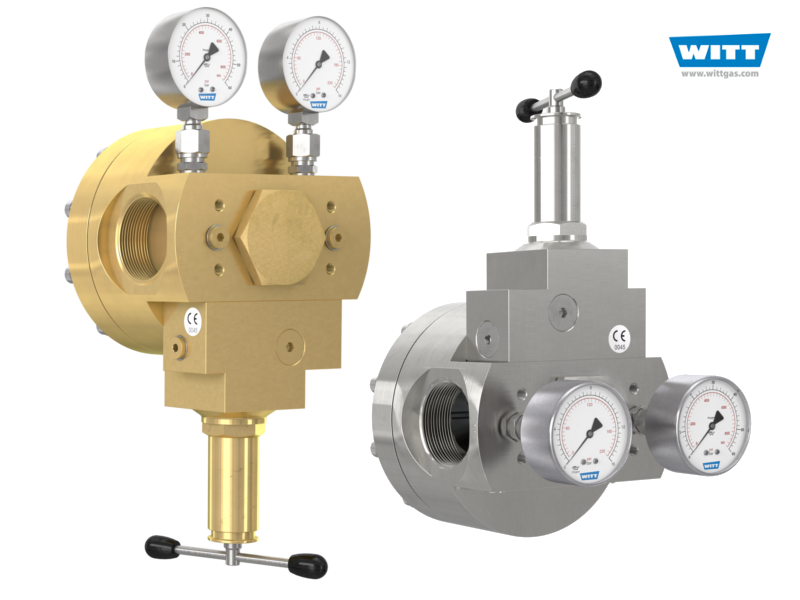

  • Model LE/S: brass, elastomer
  • Model LE-ES/S: 316L / 1.4404 stainless steel, elastomer
Weight
  • approx. 14 kg / 30.9 lb (brass)
Options
  • Filter
Gases
  • several gases, e.g. N2, CO2, O2, H2
