737 LE-HD/S – High pressure regulator (G 3/4″ female)

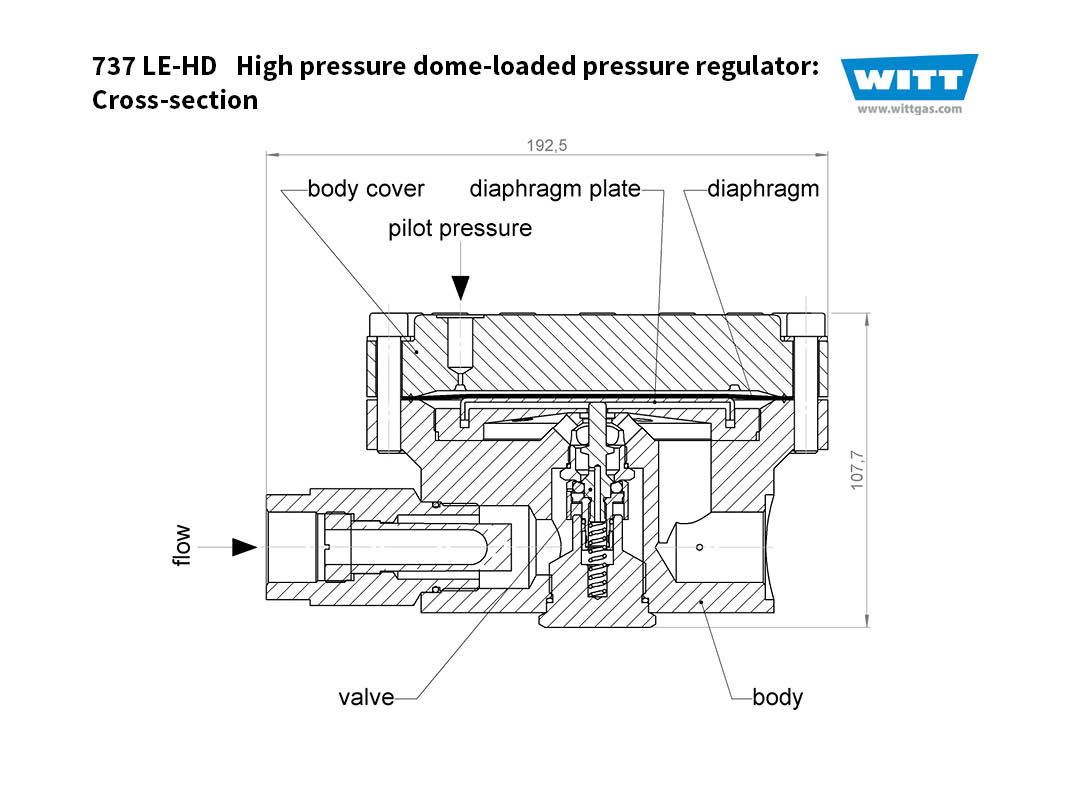

737 LE-HD/S – High pressure dome-loaded pressure regulator

Technical data

Features
  • Kv value: 1.65 / cv value: 1.9
  • Medium to high flow rates
  • Balanced Seat Design
  • High pressure design (300 bar / 4,350 psi)
  • Burn-out safety with O2
  • Filter

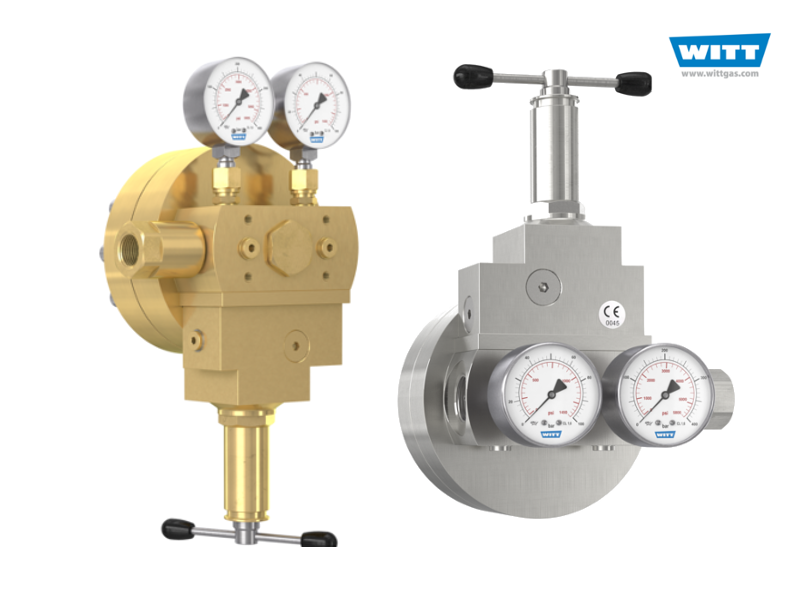

  • Ready-to-use set, completely mounted, inclusive pressure gauge, pilot pressure regulator and fittings
Pressure range
  • Max. inlet pressure: 300 bar / 4,350 psi (O2 20 bar / 2,900 psi, CO2 60 bar / 870 psi)
  • Outlet pressure: 0,5-60 bar / 7-870 psi
  • Max. pilot pressure: 50 bar / 725 psi
Connections
  • Inlet G3/4“, Outlet G1“
    (Other connections on request)
  • Gauge: G 1/8″ female
Materials
  • Model LE-HD: brass, elastomer
Weight
  • approx. 10 kg / 22 lb
Gases
  • Several gases, e.g. N2, CO2, O2, H2
