Technical data

Features

• Kv value: 1.4 / cv value: 1.6
• Medium flow rates
• Pilot Control Tube
• Balanced Seat Design
• Compact design, small size, flebible installation
• Suitable for O₂

Pressure range

• Max. inlet pressure: 25 bar / 363 psi
• Outlet pressure: 2-22 bar / 29-319 psi
• Max. pilot pressure: 10 bar / 145 psi

Connections

• G 3/8″ female
  (Other connections on request)
• Pilot pressure regulator: G 1/8″ female
• Gauge: G 1/8″ female

Materials

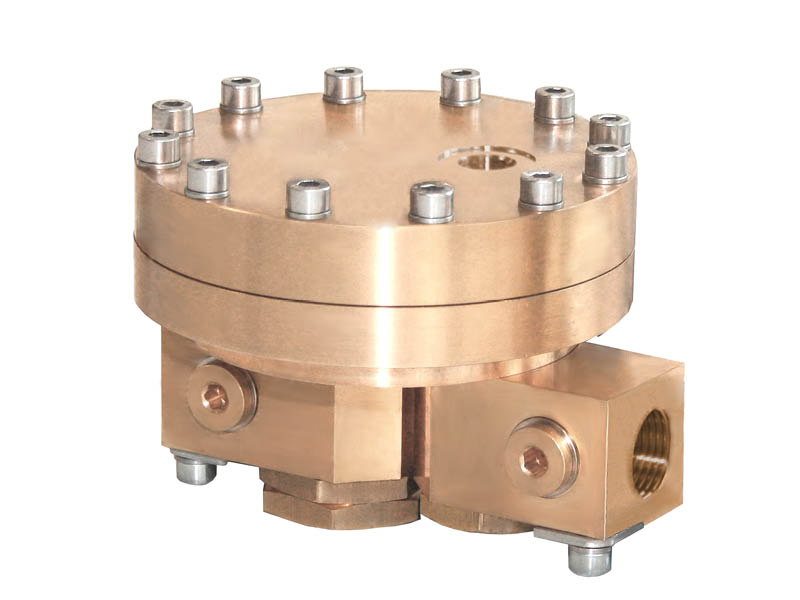

• Model LE: brass, elastomer
• Model LE-ES: 316L / 1.4404 stainless steel, elastomer

Weight

• approx. 3 kg / 6.5 lb (Brass)

Options

• Filter
• Ready to use Set

Gases

• Several gases, e.g. N₂, CO₂, O₂, H₂

Downloads

Data sheet dome-loaded pressure regulator 727 LE PDF

Brochure dome-loaded pressure regulator PDF

Quotation request

Do you have questions regarding dome-loaded pressure regulators or do you require a quotation? Talk to us about your requirements or use our request form.
